Titanium Fasteners Suppliers

Sagar Prakash Alloys is India's leading supplier of titanium fasteners for all your industrial needs. Our products use only the best, premium-quality raw materials, ensuring high tensile strength and corrosion resistance.

Titanium fasteners are a type of fastening component made from a combination of titanium and one or more other metals. The alloying process enhances the strength and durability of the fasteners, making them ideal for use in various applications. Titanium has a low density and high strength-to-weight ratio, both lightweight and incredibly strong. It makes titanium fasteners perfect for use in aerospace and military applications. Aerospace titanium fasteners, meticulously crafted from a titanium alloy, deliver unparalleled strength, resilience, and longevity, making them indispensable for critical aerospace and military applications. These fasteners excel in demanding environments, ensuring the safety and reliability of aerospace and military structures.

We offer a comprehensive range of titanium alloy fasteners that adhere to both national and international standards and are approved by reputable organizations such as ASTM, DIN, ASME, and others. Our diverse product line includes titanium nut bolt, stub bolts, washers, and screws, available in various shapes, sizes, and dimensions. These high-quality ASTM B348 titanium fasteners are offered in grades 1, 2, 3, 4, and 5, with sizes ranging from 10mm to 100mm and a standard length of 5 meters.

Titanium Fasteners, Titanium Bolts Price, Titanium Fasteners Suppliers, Titanium Bolts and Nut Stock, Titanium Fasteners India, Titanium Stud Bolt, Custom Titanium Fasteners in Mumbai.

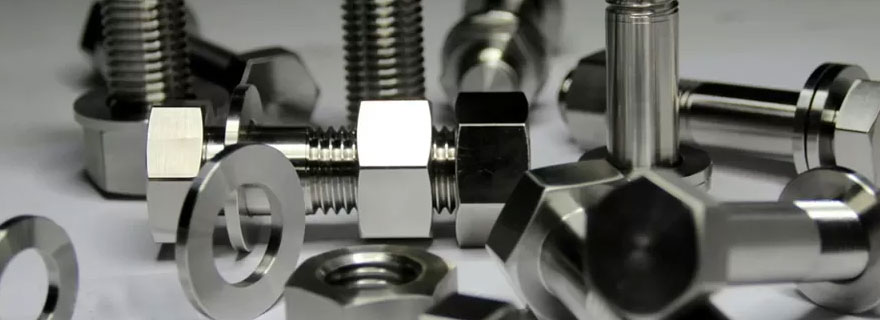

Titanium Fasteners

Titanium Nuts, Titanium Washers, ASTM B348 Titanium Fasteners Manufacturers, Titanium Nut Bolt, Titanium Threaded Rod, Titanium Screws, Buy Custom Titanium Bolts at low Price.

We understand that you may have specific requirements for your titanium fasteners, which is why we offer custom titanium fasteners that can be tailored to meet your unique needs. Our prices are competitive, so you can get the best quality products at an affordable price.

As one of the top titanium fasteners in India, we believe in delivering a high-quality product. When you buy our titanium nut bolt, we provide you with a quality certificate that ensures its quality and durability. Additionally, our products are packed in wooden or plywood cases, protecting against damage or rust during transportation. We also offer global shipping, so you can get your titanium fasteners delivered to any location worldwide. You can even purchase our products directly from our website, ensuring convenience and efficiency.

If you are looking for titanium fastener suppliers that offer quality and durability, look no further than Sagar Prakash Alloys. Our industrial products undergo rigorous inspection and testing to ensure the highest quality and reliability. Contact us today to learn more about our titanium fasteners and to request a quote.

Titanium Fasteners Specification

Titanium Fasteners Standard ASTM B348, ASME SB348
Titanium Fasteners Specification DIN, ASTM, BS and all International Standards
Titanium Nut Size M3 - M56 | 3/6" to 2" | Custom Sizes
Titanium Bolt / Screw Size M3 - M56 | 3/6" to 2" | Custom Sizes
Titanium Washer Size M3 - M56 | 3/6" to 2" | Custom Sizes
Titanium Fasteners Length 3 mm to 200 mm
Titanium Fasteners Type Bolts, Anchors, Sockets, Structural Bolts Etc, Nut, Mushroom Head Square Neck Bolts, Socket Head Cap Screw, Pan Head Screw, Cap Screw, Studs, J Bolts, Spring Washers, Wing Screw, Foundation Bolts, Screws, T-Head Bolts, Hex Coupling Nut, Screw, U- Bolts, Washers, Hex Set Screw, Socket Screw, Hex Head Bolts, Stud Bolts, Square Nut, Hex Nut, Hex Domed Cap Nuts, Nuts, Socket Hexagon Head Screw Anchor Bolt, Machine Screw, Marine Anchors, Hexagon Nut, Wing Screw, Allen Cap screw, Studs, Eye Bolt,

Titanium Fasteners Price

Type Description USA FOB Price Malaysia FOB Price Europe FOB Price Singapore FOB Price Saudi Arabia (KSA) FOB Price
Unit Per mtr Unit Per mtr Unit Per mtr Unit Per mtr Unit Per mtr
Titanium Fasteners Size : M14 x 10" Nut Bolt US $ 7.35 Malaysia Ringgit 30.50 Euro 6.09 Singapore Dollar 8.72 Saudi Riyal 25.18

Titanium Nuts Types

Titanium Hex Nuts

Titanium Hex Nuts

Titanium Nuts

Titanium Nuts

Titanium Wing Nuts

Titanium Wing Nuts

Titanium Lug Nuts

Titanium Lug Nuts

Titanium Bolts Types

Titanium Lug Bolts

Titanium Lug Bolts

Titanium Eye Bolts

Titanium Eye Bolts

Titanium Hex Bolts

Titanium Hex Bolts

Titanium U Bolts

Titanium U Bolts

Titanium Screws Types

Titanium Hex Screws

Titanium Hex Screws

Titanium Wood Screws

Titanium Wood Screws

Titanium Set Screws

Titanium Set Screws

Titanium Self Tapping Screws

Titanium Self Tapping Screws

Titanium Washers Types

Titanium Flat Washers

Titanium Flat Washers

Titanium Spring Washers

Titanium Spring Washers

Titanium Lock Washers

Titanium Lock Washers

Titanium Fender Washers

Titanium Fender Washers

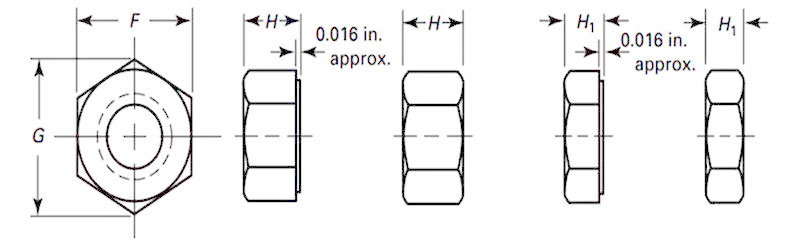

Titanium Nuts Dimensions

Titanium Nuts Dimensions Chart
Nominal
Size
inch
Basic Major
Diameter of
Thread
Width Across Flats,
F
Width Across
Corners,
G
Thickness Heavy
Hex Nuts,
H
Thickness Heavy
Hex Jam Nuts,
H1
Maximum Runout of
Bearing Surface to
Thread
Axis, FIM
Heavy HEX NUTS Heavy Hex
Jam Nuts
Specified Proof load
Basic
inch
Min. Max Min. Max Basic
inch
Min. Max Basic
inch
Min. Max Up to
150,000 psi
150,000 psi
and Greater
All Strength
Levels
1/4 0.2500 1/2 0.488 0.500 0.556 0.577 15/64 0.218 0.250 11/64 0.156 0.188 0.017 0.011 0.017
5/16 0.3125 9/16 0.546 0.562 0.622 0.650 19/64 0.280 0.314 13/64 0.186 0.220 0.020 0.012 0.020
3/8 0.3750 11/16 0.669 0.688 0.763 0.794 23/64 0.341 0.377 15/64 0.216 0.252 0.021 0.014 0.021
7/16 0.4375 3/4 0.728 0.750 0.830 0.866 27/64 0.403 0.441 17/64 0.247 0.285 0.022 0.015 0.022
1/2 0.5000 7/8 0.850 0.875 0.969 1.010 31/64 0.464 0.504 19/64 0.277 0.317 0.023 0.016 0.023
9/16 0.5625 15/16 0.909 0.938 1.037 1.083 35/64 0.526 0.568 21/64 0.307 0.349 0.024 0.017 0.024
5/8 0.6250 1 1/16 1.031 1.062 1.175 1.227 39/64 0.587 0.631 23/64 0.337 0.381 0.025 0.018 0.025
3/4 0.7500 1 1/4 1.212 1.250 1.382 1.443 47/64 0.710 0.758 27/64 0.398 0.446 0.027 0.020 0.027
7/8 0.8750 1 7/16 1.394 1.438 1.589 1.660 55/64 0.833 0.885 31/64 0.458 0.510 0.029 0.022 0.029
1 1.0000 1 5/8 1.575 1.625 1.796 1.876 63/64 0.956 1.012 35/64 0.519 0.575 0.031 0.024 0.031
1 1/8 1.1250 1 13/16 1.756 1.812 2.002 2.093 1 7/64 1.079 1.139 39/64 0.579 0.639 0.033 0.027 0.033
1 1/4 1.2500 2 1.938 2.000 2.209 2.309 1 7/32 1.187 1.251 23/32 0.687 0.751 0.035 0.030 0.035
1 3/8 1.3750 2 3/16 2.119 2.188 2.416 2.526 1 11/32 1.310 1.378 25/32 0.747 0.815 0.038 0.033 0.038
1 1/2 1.5000 2 3/8 2.300 2.375 2.622 2.742 1 15/32 1.433 1.505 27/32 0.808 0.880 0.041 0.036 0.041
1 5/8 1.6250 2 9/16 2.481 2.562 2.828 2.959 1 19/32 1.556 1.632 29/32 0.868 0.944 0.044 0.038 0.044
1 3/4 1.7500 2 3/4 2.662 2.750 3.035 3.175 1 23/32 1.679 1.759 31/32 0.929 1.009 0.048 0.041 0.048
1 7/8 1.8750 2 15/16 2.844 2.938 3.242 3.392 1 27/32 1.802 1.886 1 1/32 0.989 1.073 0.051 0.044 0.051
2 2.0000 3 1/8 3.025 3.125 3.449 3.608 1 31/32 1.925 2.013 1 3/32 1.050 1.138 0.055 0.047 0.055
2 1/4 2.2500 3 1/2 3.388 3.500 3.862 4.041 2 13/64 2.155 2.251 1 13/64 1.155 1.251 0.061 0.052 0.061
2 1/2 2.5000 3 7/8 3.750 3.875 4.275 4.474 2 29/64 2.401 2.505 1 29/64 1.401 1.505 0.068 0.058 0.068
2 3/4 2.7500 4 1/4 4.112 4.250 4.688 4.907 2 45/64 2.647 2.759 1 37/64 1.522 1.634 0.074 0.064 0.074
3 3.0000 4 5/8 4.475 4.625 5.102 5.340 2 61/64 2.893 3.013 1 45/64 1.643 1.763 0.081 0.070 0.081
3 1/4 3.2500 5 4.838 5.000 5.515 5.774 3 3/16 3.124 3.252 1 13/16 1.748 1.876 0.087 0.075 0.087
3 1/2 3.5000 5 3/8 5.200 5.375 5.928 6.207 3 7/16 3.370 3.506 1 15/16 1.870 2.006 0.094 0.081 0.094
3 3/4 3.7500 5 3/4 5.562 5.750 6.341 6.640 3 11/16 3.616 3.760 2 1/16 1.990 2.134 0.100 0.087 0.100
4 4.0000 6 1/8 5.925 6.125 6.755 7.073 3 15/16 3.862 4.014 2 3/16 2.112 2.264 0.107 0.093 0.107

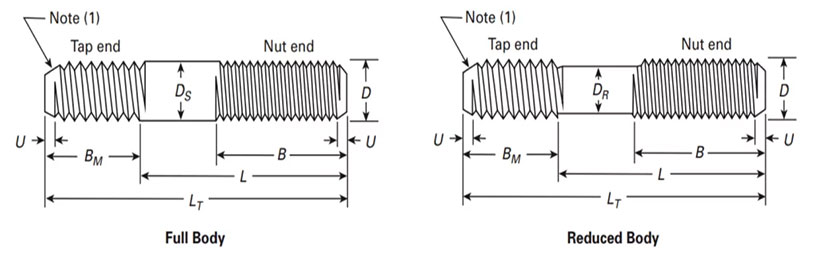

Titanium Stud Bolt Dimensions Chart
Nominal Size
Diameter, D
inch
Tap End Full
Thread Length,
BM
Umax = 2P Minimum Nut End
Full Thread Length,
Bmin
Nominal Min. Max. UNC & NC-5
Thread
UNF Thread 8UN Thread L ≤ 10 10 < L ≤ 16 L > 16
1/4 0.375 0.350 0.400 0.100 0.071 ... 0.750 1.000 1.500
5/16 0.469 0.440 0.498 0.111 0.083 -- 0.875 1.125 1.625
3/8 0.563 0.532 0.594 0.125 0.083 -- 1.000 1.250 1.750
7/16 0.656 0.620 0.692 0.143 0.100 -- 1.125 1.375 1.875
1/2 0.750 0.708 0.792 0.154 0.100 -- 1.250 1.500 2.000
9/16 0.844 0.802 0.896 0.167 0.111 -- 1.375 1.625 2.125
5/8 0.938 0.892 0.983 0.182 0.111 -- 1.500 1.750 2.250
3/4 1.1.25 1.075 1.175 0.200 0.125 -- 1.750 2.000 2.500
7/8 1.313 1.258 1.368 0.222 0.143 -- 2.000 2.250 2.750
1 1.500 1.438 1.562 0.250 0.167 -- 2.250 2.500 3.000
1 1/8 1.688 1.625 1.750 0.286 0.167 0.250 2.500 2.750 3.250
1 1/4 1.875 1.813 1.938 0.286 0.167 0.250 2.750 3.000 3.500
1 3/8 2.063 2.000 2.125 0.333 0.167 0.250 3.000 3.250 3.750
1 1/2 2.250 2.188 2.313 0.333 0.167 0.250 3.250 3.500 4.000
1 5/8 2.438 2.375 2.500 -- -- 0.250 3.500 3.750 4.250
1 3/4 2.625 2.563 2.688 0.400 -- 0.250 3.750 4.000 4.500
1 7/8 2.813 2.750 2.875 -- -- 0.250 4.000 4.250 4.750
2 3.000 2.925 3.075 0.444 -- 0.250 4.250 4.500 5.000
2 1/4 3.375 3.300 3.450 0.444 -- 0.250 4.750 5.000 5.500
2 1/2 3.750 3.675 3.825 0.500 -- 0.250 5.250 5.500 6.000
2 3/4 4.125 4.050 4.200 0.500 -- 0.250 5.750 6.000 6.500
3 4.500 4.425 4.575 0.500 -- 0.250 -- 6.500 7.000
3 1/4 4.875 4.775 4.975 0.500 -- 0.250 -- 7.000 7.500
3 1/2 5.250 5.150 5.350 0.500 -- 0.250 -- 7.500 8.000
3 3/4 5.625 5.525 5.725 0.500 -- 0.250 -- 8.000 8.500
4 6.000 5.900 6.100 0.500 -- 0.250 -- 8.500 9.000

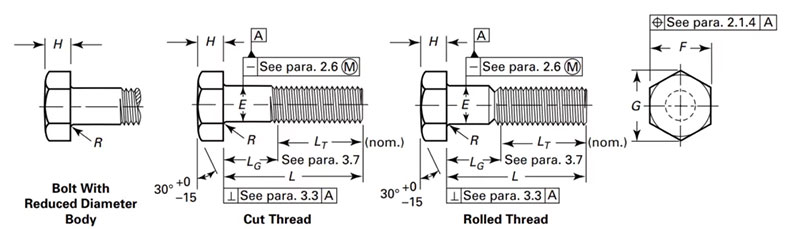

Titanium Bolt & Screw Dimensions

Titanium Bolt & Screw  Dimensions Chart
Nominal Size
or Basic
Product
Diameter

Full-Size Body
Diameter,
E
Width Across Flats,
F
Width Across
Corners, G
Head Height, H Basic Radius of
Fillet, R
Nominal Thread
Length for Bolt
Lengths,
LT
inch mm Max Min Basic
inch
Max Min Max Min Basic
inch
Max Min Max Min 6 in. and
Shoter
Over
6 in.
1⁄4 0.25 0.26 0.237 7⁄16 0.438 0.425 0.505 0.484 11⁄64 0.188 0.15 0.03 0.01 0.75 1
5⁄16 0.3125 0.324 0.298 1⁄2 0.5 0.484 0.577 0.552 7⁄32 0.235 0.195 0.03 0.01 0.875 1.125
3⁄8 0.375 0.388 0.36 9⁄16 0.562 0.544 0.65 0.62 1⁄4 0.268 0.226 0.03 0.01 1 1.25
7⁄16 0.4375 0.452 0.421 5⁄8 0.625 0.603 0.722 0.687 19⁄64 0.316 0.272 0.03 0.01 1.125 1.375
1⁄2 0.5 0.515 0.482 3⁄4 0.75 0.725 0.866 0.826 11⁄32 0.364 0.302 0.03 0.01 1.25 1.5
5⁄8 0.625 0.642 0.605 15⁄16 0.938 0.906 1.083 1.033 27⁄64 0.444 0.378 0.06 0.02 1.5 1.75
3⁄4 0.75 0.768 0.729 11⁄8 1.125 1.088 1.299 1.24 1⁄2 0.524 0.455 0.06 0.02 1.75 2
7⁄8 0.875 0.895 0.852 1 5⁄16 1.312 1.269 1.516 1.447 37⁄64 0.604 0.531 0.06 0.02 2 2.25
1 1 1.022 0.976 1 1⁄2 1.5 1.45 1.732 1.653 43⁄64 0.7 0.591 0.09 0.03 2.25 2.5
1 1⁄8 1.125 1.149 1.098 1 11⁄16 1.688 1.631 1.949 1.859 3⁄4 0.78 0.658 0.09 0.03 2.5 2.75
1 1⁄4 1.25 1.277 1.223 1 7⁄8 1.875 1.812 2.165 2.066 27⁄32 0.876 0.749 0.09 0.03 2.75 3
1 3⁄8 1.375 1.404 1.345 2 1⁄16 2.062 1.994 2.382 2.273 29⁄32 0.94 0.81 0.09 0.03 3 3.25
1 1⁄2 1.5 1.531 1.47 2 1⁄4 2.25 2.175 2.598 2.48 1 1.036 0.902 0.09 0.03 3.25 3.5
1 5⁄8 1.625 1.658 1.591 2 7⁄16 2.438 2.356 2.815 2.616 1 3⁄32 1.116 0.978 0.09 0.03 3.5 3.75
1 3⁄4 1.75 1.785 1.716 2 5⁄8 2.625 2.538 3.031 2.893 1 5⁄32 1.196 1.054 0.12 0.04 3.75 4
1 7⁄8 1.875 1.912 1.839 2 13⁄16 2.812 2.719 3.248 3.099 1 1⁄4 1.276 1.13 0.12 0.04 4 4.25
2 2 2.039 1.964 3 3 2.9 3.464 3.306 1 11⁄32 1.388 1.175 0.12 0.04 4.25 4.5
2 1⁄4 2.25 2.305 2.214 3 3⁄8 3.375 3.262 3.897 3.719 1 1⁄2 1.548 1.327 0.19 0.06 4.75 5
2 1⁄2 2.5 2.559 2.461 3 3⁄4 3.75 3.625 4.33 4.133 1 21⁄32 1.708 1.479 0.19 0.06 5.25 5.5
2 3⁄4 2.75 2.827 2.711 4 1⁄8 4.125 3.988 4.763 4.546 1 13⁄16 1.869 1.632 0.19 0.06 5.75 6
3 3 3.081 2.961 4 1⁄2 4.5 4.35 5.196 4.959 2 2.06 1.815 0.19 0.06 6.25 6.5
3 1⁄4 3.25 3.335 3.21 4 7⁄8 4.875 4.712 5.629 5.372 2 3⁄16 2.251 1.936 0.19 0.06 6.75 7
3 1⁄2 3.5 3.589 3.461 5 1⁄4 5.25 5.075 6.062 5.786 2 5⁄16 2.38 2.057 0.19 0.06 7.25 7.5
3 3⁄4 3.75 3.858 3.726 5 5⁄8 5.625 5.437 6.495 6.198 2 1⁄2 2.572 2.241 0.19 0.06 7.75 8
4 4 4.111 3.975 6 6 5.8 6.928 6.612 2 11⁄16 2.764 2.424 0.19 0.06 8.25 8.5

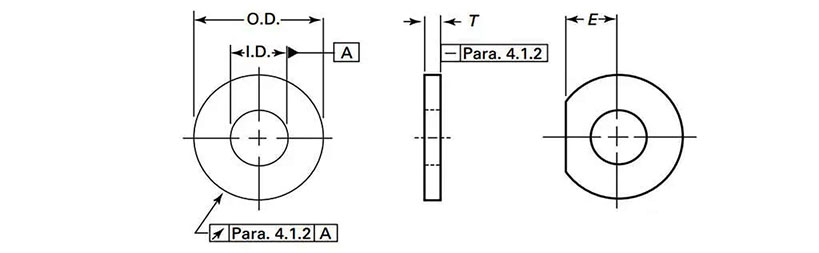

Titanium Washer Dimensions

Titanium Washer Dimensions Chart
Nominal Size T Clipped Width E, Min.
I.D. O.D. Standard Extra Thick
[Note (1)] Max. Min. Max. Min. Max. Min. Max. Min. [Note (2)]
12 14.4 14 27 25.7 4.6 3.1 10 8 10.5
16 18.4 18 34 32.4 4.6 3.1 10 8 14
20 22.5 22 42 40.4 4.6 3.1 10 8 17.5
22 24.5 24 44 42.4 4.6 3.4 10 8 19.2
24 26.5 26 50 48.4 4.6 3.4 10 8 21
27 30.5 30 56 S4.1 4.6 3.4 10 8 23.6
30 33.6 33 60 58.1 4.6 3.4 10 8 26.2
36 39.6 39 72 70.1 4.6 3.4 10 8 31.S
42 45.6 45 84 81.8 7.2 4.6 10 8 36.7
48 52.7 52 95 92.8 7.2 4.6 10 8 42
56 62.7 62 107 104.8 8.7 6.1 10 8 49
64 70.7 70 118 115.8 8.7 6.1 10 8 56
72 78.7 78 130 127.5 8.7 6.1 10 8 63
80 86.9 86 142 139.5 8.7 6.1 10 8 70
90 96.9 96 159 156.5 8.7 6.1 10 8 78.7
100 107.9 107 176 173.5 8.7 6.1 10 8 87.5

Titanium Bolt Torque Chart

Maximum Titanium Bolt Torque - in mm
Thread Diameter 3mm 4mm 5mm 6mm 8mm 10mm 12mm
Flanged Hex Head Bolt 2.00 5.00 12.00 15.00 35.00 45.00 97.50
Torx Drive n/a n/a n/a n/a 35.00 45.00 n/a
Socket Cap Bolt 1.73 4.00 10.00 14.00 25.00 38.00 n/a
Dome Head / Fairing Bolt n/a 3.50 5.00 11.00 16.00 26.00 n/a
Countersunk Bolt n/a 3.50 5.00 8.00 15.00 20.00 n/a
To buy titanium fasteners at the best price with urgent delivery, please reach out to us via email at [email protected]. We have a network of dealers, suppliers, distributors, and direct sales representatives located globally. They are ready to assist you in acquiring titanium alloy fasteners and addressing any inquiries you may have.
