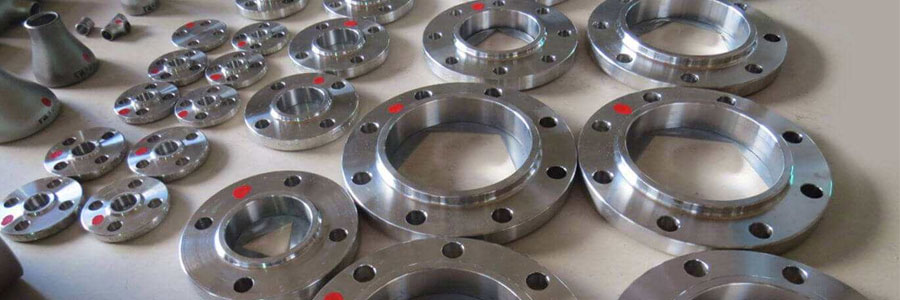

We at Sagar Prakash Alloys are one of the prominent manufacturers of Stainless Steel 410 Flanges in India. We have gained the reputation of a professional company with many years of experience and focus on the highest quality. Our range of 410 stainless steel flanges is designed to fulfil the client's requirements, be it for commercial or industrial use.
SS 410 Flanges are widely used due to their features such as high corrosion resistance, strength, and durability. These properties make them suitable for application in several services such as chemical processing, petrochemical industries, and electricity generation. Being one of the prime stainless steel 410 flanges manufacturers, we make certain that our products are of top-notch quality and offer excellent performance.
Stainless Steel 410 Flanges, SS 410 Weld Neck Flange, SS 410 Lap Joint Flange, Stainless Steel 410 Flanges Manufacturer, Stainless Steel 410 Flanges Supplier In Mumbai, 410 Stainless Steel Flanges, SS 410 Blind Flange, SS 410 Slip On Flanges, 410 Stainless Steel Ring Type Joint
The 410 stainless steel flanges that we provide are available in different types and sizes to meet the needs of the clients. Our product range includes:
- SS 410 Weld Neck Flange: Weld neck flange is used for applications where high pressure is involved and offers a perfect seal. This is usually applied in oil and gas transmission pipelines, chemical plants, and electrical power plants.
- SS 410 Lap Joint Flange: This type of flange is used in applications where there is a regular need to disassemble and reassemble the flange. The lap joint flange is easy to assemble and disassemble, hence suitable for easy maintenance and inspection.
- SS 410 Blind Flange: It is employed to shut the ends of piping systems and ensures no leakage occurs through the tight fitting of the blind flange. It is commonly applied in the petrochemical industry, oil and gas, and water treatment fields.
- SS 410 Slip On Flanges: These flanges are quite simple to fit and are employed in low pressure conditions. They are ideal for use where there is little space and welding cannot be carried out.
- 410 Stainless Steel Ring Type Joint: The ring type joint flange, is used for applications that operate at high pressure and also high temperatures. It offers a metal-to-metal seal which is very important in leaking areas, especially when the environment requires high levels of safety.
Being a reliable stainless steel 410 flanges exporter in Mumbai, we proudly offer our customers high-quality goods. Quality assurance in our manufacturing line is very important, and this is the reason why we ensure that all flanges manufactured meet the required quality standard.
We also pride ourselves in providing the very best customer products and outstanding product delivery. We offer professional customer service, guaranteeing that our customers receive optimal service from when they contact us to when they receive their ordered products. At the same time, we recognize that every client is different and try to offer a tailored approach that will fit the needs of the client.
We always strive to supply the best stainless steel 410 flanges in the market to our valued customers. Whether you require SS 410 weld neck flange, SS 410 lap joint flange, SS 410 blind flange, or SS 410 slip on flanges, you can rely on us for quality products and services. Please feel free to contact us today for more information regarding our products and services.
Stainless Steel 410 Flanges Specification
| Standard | ASTM A182, ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Form | Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Orifice Flanges, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange |
Type of Stainless Steel 410 Flanges
SS 410 Slip On Flanges
SS 410 Weld Neck Flanges
SS 410 Blind Flanges
SS 410 Socket Weld Flanges
SS 410 Lap Joint Flanges
SS 410 Threaded Flanges
SS 410 RJT Flanges
SS 410 Plate Flange
SS 410 Reducing Flanges
SS 410 Square Flanges
SS 410 Long Weld Neck Flanges
SS 410 Flat Flanges
SS 410 Forged Flanges
SS 410 SORF Flanges
SS 410 Expander Flanges
SS 410 Orifice Flanges
Equivalent Grades of ASME SA182 Stainless Steel 410 Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | X12Cr13 |
Stainless Steel 410 Flanges Chemical Properties
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 410 | 0.15 max | 1.0 max | 1.0 max | 0.040 max | 0.030 max | 11.5 – 13.5 | – | 0.50 max | – |
SS 410 Flanges Mechanical Properties
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 410 | 65 (450) | 30 (205) | 20 | 217 | 96 |
410 Stainless Steel Flanges Dimensions
| Nominal Size (inches) | Outside Diameter (OD) (mm) | Thickness (mm) | Number of Bolt Holes | Bolt Hole Diameter (mm) | Bolt Circle Diameter (mm) |
| 1/2" | 89 | 11 | 4 | 15 | 60 |
| 3/4" | 98 | 13 | 4 | 15 | 70 |
| 1" | 108 | 14 | 4 | 15 | 79 |
| 1-1/2" | 127 | 16 | 4 | 19 | 98 |
| 2" | 152 | 19 | 4 | 19 | 121 |
| 3" | 191 | 22 | 4 | 19 | 152 |
| 4" | 229 | 24 | 8 | 19 | 190 |
| 6" | 279 | 25 | 8 | 22 | 241 |
| 8" | 343 | 29 | 8 | 22 | 298 |
| 10" | 406 | 32 | 12 | 25 | 362 |
| 12" | 483 | 35 | 12 | 25 | 432 |
| 14" | 533 | 37 | 12 | 29 | 476 |
| 16" | 597 | 40 | 16 | 29 | 540 |
| 18" | 635 | 43 | 16 | 32 | 596 |
| 20" | 698 | 45 | 20 | 32 | 654 |
| 24" | 813 | 51 | 20 | 35 | 775 |
Quality Assurance
Stainless Steel S41000 Flanges are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN or WERKSTOFFE. Our products undergo stringent quality tests before they are dispatched.
Material Testing
PMI Testing, Ultrasonic Test, Mechanical Testing, Spectro Tests for Chemical Analysis of the grade, Flaring Test, IGC, etc. are some of the tests conducted at our facility. We welcome stage wise inspection from any of your representative or third party inspection agencies.
To buy Stainless Steel 410 Flanges At best price & urgent delivery please mail to [email protected], As we have Our Dealer, Supplier, distributors & direct sales representatives in all over globe who will help you to buy Stainless Steel UNS S41000 / 1.4762 Flanges & will resolve your queries
